Bảng điều khiển LV

Ngày 26 tháng 6 năm 2026Sản phẩm điện áp thấp 8080

Các chứng chỉ hiện có CE / UL Tình trạng sẵn có tùy thuộc vào mẫu và cấu hình.

Tổng quan

LV Switchboard, also known as UL 891 Low Voltage Switchboard, is an important low-voltage power distribution product used to receive and distribute electrical power from transformers, generators, low-voltage switchgear, or other power sources to downstream electrical loads. It is widely used in commercial buildings, industrial plants, data centers, hospitals, schools, infrastructure projects, renewable energy systems, and utility distribution networks.

Ưu điểm của sản phẩm

Reliable Low-Voltage Power DistributionThe LV Switchboard is designed to distribute low-voltage power safely and efficiently to multiple downstream loads.

UL 891 Oriented DesignThe product is designed for UL 891 low-voltage switchboard applications.

Flexible Breaker ConfigurationThe switchboard can be equipped with UL1066 air circuit breakers and UL489 molded case circuit breakers according to the system design.

High Busbar CapacityThe product can be configured with high-capacity busbars to support large electrical loads.

Thông số kỹ thuật tiêu biểu

Standard Reference	UL 891
Rated Operating Voltage	Up to 480V class, project-based design
Maximum Voltage Class	Up to 508Vac design reference
Short-Circuit Withstand	Up to 100kA according to project design
Enclosure Type	NEMA Type 1 indoor, NEMA 3R outdoor optional
Cài đặt	Indoor electrical room, substation, commercial building, industrial facility, outdoor distribution area

Chỉ là cấu hình tiêu biểu. Các thông số kỹ thuật cuối cùng sẽ được xác nhận dựa trên yêu cầu của dự án.

Ứng dụng

LV Switchboard / UL 891 Low Voltage Switchboard is widely used in low-voltage electrical distribution systems that require safe power distribution, flexible feeder arrangement, and reliable protection. It is suitable for both main distribution and secondary distribution applications.

LAST: LV SwitchgearTIẾP THEO: Bảng điều khiển – UL67

Các đề xuất liên quan

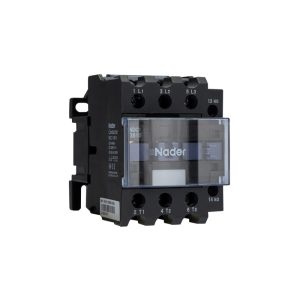

NDC1(Z)-38 AC Contactor with AC or DC Coil
2024年4月25日 2261
NDC1(Z)-38 AC Contactor, which used in 50Hz(60Hz) AC circuit with the rated voltage of 1000V. It is used in AC-3 type, with the rated working voltage of 415V and rated working current of 38A, to realize distant connection and disconnection of the ...
Xem chi tiết
NDGR2-160 Isolating Switch
2023年5月26日 1667
Applications: NDGR2-160 isolating switch fuse group applied to ac 50 hz, rated voltage of AC400V, AC690V, rated current 160 a low-voltage distribution network, or motor as infrequently connected, breaking circuit and circuit isolation...
Xem chi tiết

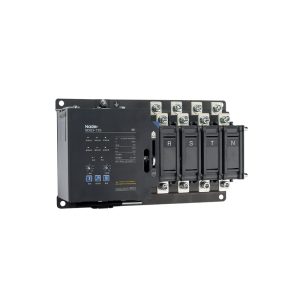

NDQ3-125
